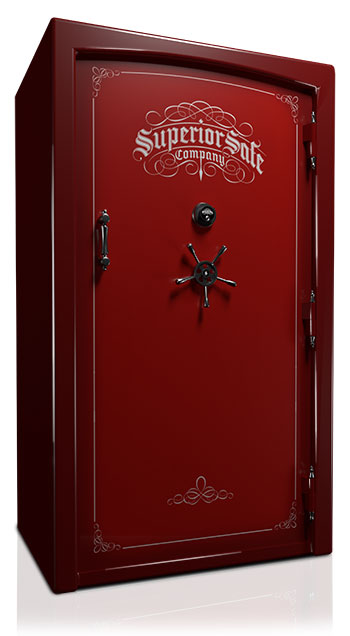

Supreme Series

The Supreme Series safes are truly the ideal in safe production, containing more steel than any other safe in the industry. Their unparalleled structure includes a Triple-Step™ door with three heat-expanding seals, four layers of fire protection, and a glass relock system. The unsurpassable radius, door edges and luxurious standard of two-tone finishes set them apart as the ultimate safe.

  • Fire and Security Ratings

    • UL® Residential Security Rating
    • 1865° 110-Minute Fire Rating
    • Tested in an ASME Certi?ed Facility
    • Lifetime Warranty

    Locking System

    • Sargent & Greenleaf® Group II Dial Lock
    • Glass-Guard™ Relock System with Remote Relockers
    • Superior’s Auto-Relock™ System
    • Diamond-Embedded Armor Plate™

    Boltworks

    • Radial Gear-Driven Boltworks
    • Four-Way Active Boltworks
    • Up to 20, 1-1/2″-Diameter Bolts
    • Door-Detent™ System
    • Roughneck™ Bolt Guides
  • Interior

    • Plush Velour Interior
    • Bank Box™ Storage System (SU-55, SU-65)
    • High Capacity Gun Racks
    • Steel Reinforced Top Shelves (except SU-35)
    • LED Lighting with Motion Sensor
    • External 120-Volt Inlet
    • Deluxe Door Organizer

    See Interior Configurations Below

    Maximum Security Door

    • 5-1/4″- Thick Triple-Step™ Door
    • 3/8″ Outer Steel, 10-Gauge Inner Steel
    • 1/2″ Reinforced Door Edge
    • External Ball-Bearing Hinges
    • Four Layers of Fire Insulation
    • Five-Spoke Custom Handle with Slip Clutch

    Body

    • 2-11/16″-Thick Composite Walls
    • 3/16″ Steel Walls
    • Four Layers of Fire Insulation
    • Double-Steel Door Casement™
    • Three Fire Seals



Locks


Standard Dial                                       Optional E-Lock



Exterior Color Selections



Sizes and Dimensions

Safe Model Exterior Dimensions Volume (Cubic Ft.) Approx. Weight (lbs.) Outer Shell Thickness Outer Door Thickness Inner Door Thickness Active Door Bolts Gun Capacity
Width Height Depth Total Depth*
SU-65 52-1/2" 73" 28" 30-1/2" 65 CF 1975 3/16" 1/2" 10 ga. 20 - 1-1/2" 64/58**
SU-55 46" 73" 27-1/2" 30" 55 CF 1800 3/16" 1/2" 10 ga. 18 - 1-1/2" 58/49**
SU-45 40" 67" 27-1/2" 30" 45 CF 1525 3/16" 1/2" 10 ga. 16 - 1-1/2" 49
SU-35 35" 67" 25-1/2" 28" 35 CF 1285 3/16" 1/2" 10 ga. 16 - 1-1/2" 36
*Total Depth includes 2½" for handle. **With Bank Box™ Storage Drawers



Interior Layouts

champion-interior-safe-layouts
