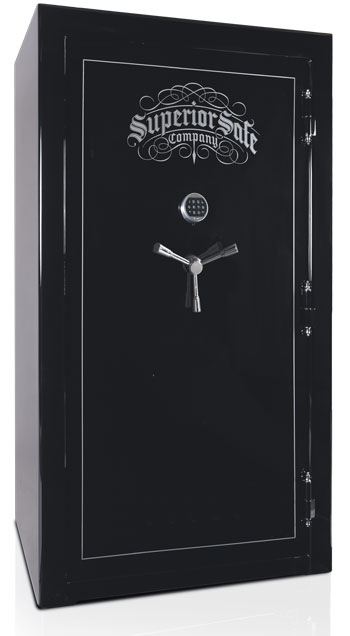

Ironside Series

Unlike others of its class, the Ironside Series safes have unprecedented features. The two-size series offers a Double-Step™ door design, active bolts on all four sides, and three levels of fire protection on the top and two on the sides. The Ironside is a classic edition, more than qualified to keep your collections safe.

  • Fire and Security Ratings

    • 1400° 60-Minute Fire Rating
    • Tested in an ASME Certi?ed Facility
    • UL® Security Rating
    • Lifetime Warranty

    Locking System

    • Sargent & Greenleaf® Group II Dial Lock
    • Superior’s Auto-Relock™ System
    • Diamond-Embedded Armor Plate™

    Boltworks

    • Four-Way Active Boltworks
    • Up to 12, 1″-Diameter Bolts
    • Door-Detent™ System
    • Roughneck™ Bolt Guides
  • Interior

    • Plush Velour Interior
    • High Capacity Gun Rack
    • Deluxe Door Organizer

    See Interior Configurations Below

    High Security Door

    • 4-1/2″-Thick Double-Plate Steel Door
    • 12-Gauge Outer Door Steel, Full 14-Gauge Inner
    • 7/16″ Reinforced Door Edge
    • External Ball-Bearing Hinges
    • Two Layers of Fire Insulation
    • Three-Spoke Handle with Slip Clutch

    Body

    • 3/4″ -Thick Composite Walls
    • 12-Gauge Steel Walls
    • Up to Three Layers Fire Insulation
    • Double-Steel Door Casement™
    • Heat-Expanding Fire Seal

Locks


Standard Dial                                       Optional E-Lock



Exterior Color Selections



Sizes and Dimensions

Safe Model Exterior Dimensions Volume (Cubic Ft.) Approx. Weight (lbs.) Outer Shell Thickness Outer Door Thickness Active Door Bolts Gun Capacity
Width Height Depth Total Depth*
SI-45 40" 72" 26" 28-1/2" 43 CF 900 12 ga. 12 ga. 12 - 1" 37
SI-40 40" 60" 26" 28-1/2" 37 CF 750 12 ga. 12 ga. 10 - 1" 37
SI-30 34" 60" 22" 24-1/2" 26 CF 625 12 ga. 12 ga. 10 - 1" 27
SI-20 28" 60" 20" 22-1/2" 20 CF 510 12 ga. 12 ga. 8 - 1" 24
SI-15 22" 60" 20" 22-1/2" 15 CF 450 12 ga. 12 ga. 8 - 1" 15
*Total Depth includes 2½" for handle.



Interior Layouts

champion-interior-safe-layouts
