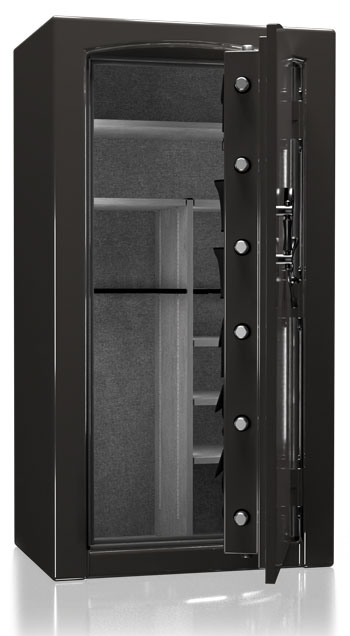

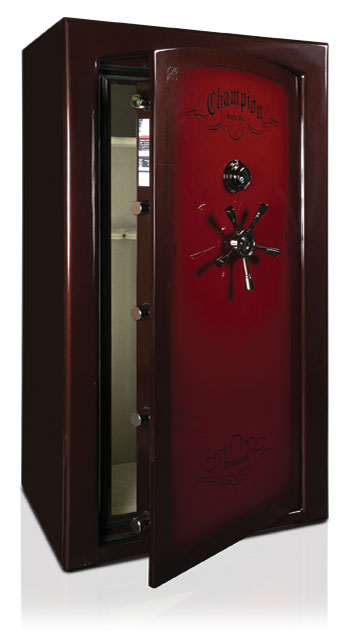

Triumph Series

Champion has dared mighty things to produce the Triumph Series. Until now maximum security has not been available in a safe of the Triumph’s class. Its heavy 10-gauge steel body with Steel Arch Doorway™ and Double-Steel Door Casement™ provides a pry-resistant fortress. The Triumph’s thick Delta Force™ door and precision cam-driven boltworks with 1½”-diameter door bolts provide maximum security. The Triumph’s state-of-the-art door defense systems include: full inner door steel, Four-Way Cam with Cam-Lock™, Diamond-Embedded Armor Plate™ lock protection, and a mechanical relocking system. Double fire seals assist with a 1650°F 90-minute fire rating—unsurpassed in its class. Add to this a velour interior, LED lighting, and a deluxe door organizer, and you complete the masterpiece.

  • Fire and Security Ratings

    • 1650°F 90-Minute Fire Rating
    • Phoenix™ Class IV Fire Protection
    • Tested in an ASME Certi?ed Facility
    • UL® Security Rating
    • Lifetime Warranty

    Locking System

    • Sargent & Greenleaf® Group II Dial Lock
    • Champion’s Auto-Relock™ System
    • Diamond-Embedded Armor Plate™

    Boltworks

    • Four-Way Active Boltworks
    • Up to 22, 1-1/2”-Diameter Door Bolts
    • Bolt-Detent™ System
    • Roughneck™ Bolt Guides
    • Four-Way Cam with Cam-Lock™
  • Interior

    • Plush Velour Interior
    • High Capacity Gun Rack
    • LED Lighting with Motion Sensor
    • 110-Volt Power Receptacle
    • Deluxe Door Organizer

    See Interior Configurations Below

    Maximum Security Door

    • Exclusive Five-Inch Thick Delta Force™ Door
    • 1/4″ Outer Door Steel, Full 12-Gauge Inner
    • 5/8″ Reinforced Door Edge
    • Three Layers of Fire Insulation
    • Internal Ball-Bearing Hinges
    • Five-Spoke Handle with Slip Clutch

    Body

    • Classic Steel Arch Doorway™
    • Two-Inch Thick Composite Walls
    • 10-Gauge Steel Walls
    • Three Layers of Fire Insulation
    • Double-Steel Door Casement™
    • Dual Fire Seals





Locks


Standard Dial                                       Optional E-Lock



Exterior Color Selections



Sizes and Dimensions

Safe Model Exterior Dimensions Volume (Cubic Ft.) Approx. Weight (lbs.) Outer Shell Thickness Outer Door Thickness Inner Door Thickness Active Door Bolts Gun Capacity
Width Height Depth Total Depth*
TR-75 56" 72-1/4" 33" 35-1/2" 78 CF 1800 10 ga. 1/4" 12 ga. 22 - 1-1/2" 102
TR-60 50" 72-1/4" 28" 30-1/2" 59 CF 1530 10 ga. 1/4" 12 ga. 22 - 1-1/2" 64
TR-50 44" 72-1/4" 28" 30-1/2" 52 CF 1385 10 ga. 1/4" 12 ga. 20 - 1-1/2" 58
TR-40 38" 66-1/4" 26" 28-1/2" 38 CF 1135 10 ga. 1/4" 12 ga. 16 - 1-1/2" 49
TR-30 32" 66-1/4" 24" 26-1/2" 30 CF 965 10 ga. 1/4" 12 ga. 16 - 1-1/2" 36
TR-25 32" 60-1/4" 24" 26-1/2" 27 CF 900 10 ga. 1/4" 12 ga. 14 - 1-1/2" 36



Interior Layouts

champion-interior-safe-layouts
