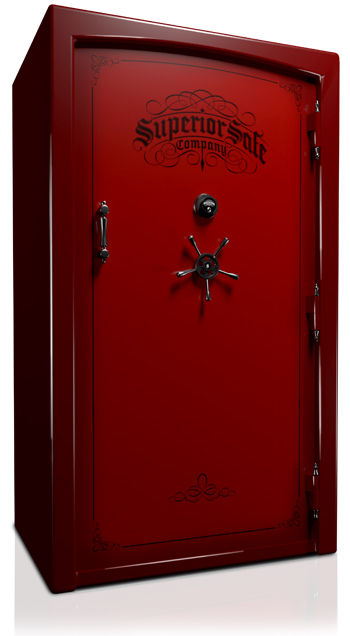

Master Series

Master Series safes boast the same Double-Step™ door design, beautiful radius edges, and size options as those of the Supreme Series. These stately safes come equipped with ASME certified fire protection at 1650°F for 90 minutes. Their 10-gauge exterior serves as the finishing touch for a safe that is king of its class.

  • Fire and Security Ratings

    • 1650°F 90-Minute Fire Rating
    • Tested in an ASME Certi?ed Facility
    • UL® Security Rating
    • Lifetime Warranty

    Locking System

    • Sargent & Greenleaf® Group II Dial Lock
    • Superior’s Auto-Relock™ System
    • Diamond-Embedded Armor Plate™

    Boltworks

    • Four-Way Active Boltworks
    • Up to 20, 1-1/2”-Diameter Bolts
    • Door-Detent™ System
    • Roughneck™ Bolt Guides
    • Cam-Lock™ Pressure Reliever
  • Interior

    • Plush Velour Interior
    • High Capacity Gun Rack
    • LED Lighting with Motion Sensor
    • External 120-Volt Inlet
    • Deluxe Door Organizer

    See Interior Configurations Below

    Maximum Security Door

    • 4-1/2″- Thick Double-Step™ Door
    • 3/16″ Outer Door Steel, 12-Gauge Inner
    • 3/4″ Reinforced Door Edge
    • External Ball-Bearing Hinges
    • Three Layers of Fire Insulation
    • Five-Spoke Handle with Slip Clutch

    Body

    • Two-Inch Thick Composite Walls
    • 10-Gauge Steel Walls
    • Three Layers of Fire Insulation
    • Double-Steel Door Casement™
    • Two Fire Seals

Locks


Standard Dial                                       Optional E-Lock



Exterior Color Selections



Sizes and Dimensions

Safe Model Exterior Dimensions Volume (Cubic Ft.) Approx. Weight (lbs.) Outer Shell Thickness Outer Door Thickness Inner Door Thickness Active Door Bolts Gun Capacity
Width Height Depth Total Depth*
SM-75 54" 72-1/2" 33" 35-1/2" 75 CF 1590 10 ga. 3/16" 12 ga. 20 - 1-1/2" 102
SM-60 48" 72-1/2" 28" 30-1/2" 56 CF 1340 10 ga. 3/16" 12 ga. 20 - 1-1/2" 64
SM-50 42" 72-1/2" 28" 30-1/2" 50 CF 1225 10 ga. 3/16" 12 ga. 18 - 1-1/2" 58
SM-40 36" 66-1/2" 26" 28-1/2" 38 CF 1015 10 ga. 3/16" 12 ga. 16 - 1-1/2" 49
SM-30 30" 66-1/2" 24" 26-1/2" 30 CF 850 10 ga. 3/16" 12 ga. 16 - 1-1/2" 36
SM-25 30" 60-1/2" 24" 26-1/2" 25 CF 790 10 ga. 3/16" 12 ga. 14 - 1-1/2" 36



Interior Layouts

champion-interior-safe-layouts
